Maker Modules

Circuit Modules


Various ready-made circuit modules for a variety of functions.
Micro Tutor Uno
K141

Micro Tutor Uno

Micro-Tutor Uno – Arduino/Microcontroller coding and hardware activity board with prototyping area. Welcome to the world of microcontrollers! Our...
£23.28
... more info
USBasp
M008

USBasp

In-circuit programmer for AVR microcontrollers. Linux, Mac OSX and Windows compatible. Supplied with 10-way IDC lead.
£4.55
... more info
 Sold Out
Uno R3 Clone
M009

Uno R3 Clone

Clone of the Arduino Uno R3. DIL socket mounted processor 100% compatible and includes a USB cable.
£10.71
Add:
Budget RF Link Pair
M010

Budget RF Link Pair

433MHz RF link modules for remote control applications. Widely used in Arduino based projects. Transmitter Specs: Voltage: 3.3V to 12V Range: 20m to...
£1.70
... more info
 Sold Out
Sound Detection Module
M014

Sound Detection Module

Electret microphone with comparator circuit for sound detection. Power ON and sound detected LED indicators. Digital and analogue outputs....
£1.22
Add:
Relay Module 1Ch 5V with Optocoupler.
M017

Relay Module 1Ch 5V with Optocoupler.

Opto-isolated 10A Change-over Relay. On-board optocoupler circuit withrelay active led indicator. 3-way 0.1" pin header strip for 5Vdc supply and...
£2.00
Add:
NRF24L01 2.4GHz Wireless Module
M021

NRF24L01 2.4GHz Wireless Module

NRF24L01+ 2.4GHz Transceiver Module Data transfer up to 2Mbps. 125 Channels, Multi-point communication and frequency hopping to meet the...
£1.54
Add:
HC-05 Bluetooth Master Slave Module
M026

HC-05 Bluetooth Master Slave Module

Bluetooth communications module mounted on base board for easy plug-in connection and voltage regulation. Ideal for use in Arduino serial...
£6.11
... more info
 Sold Out
DS3231 I2C Real Time Clock Module with AT24C32 Memory
M033

DS3231 I2C Real Time Clock Module with AT24C32 Memory

A low cost, accurate I2C real-time clock. with an integrated 32K AT24C32 EEPROM. Supply voltage 3.3 V to 5.5 V A coin cell battery holder allows...
£2.65
Add:
HC-SR501 PIR Module
M034

HC-SR501 PIR Module

PIR motion sensor with high/low TTL 3.3V output signal. Sensitivity (up to 7m) and output duration (20s - 5min approx.) adjustable. 5V - 20V DC...
£1.79
Add:
Soil Moisture Sensor Module
M035

Soil Moisture Sensor Module

A module for detecting moisture levels in soil. Ideal for experimenting with automatic watering systems and alarms. Consisting of a resistive...
£1.08
Add:
ESP8266 DevKit Module V4 with CP2102 UART
M038

ESP8266 DevKit Module V4 with CP2102 UART

Based around the ESP8266 ESP-12 and NodeMCU firmware this module provides an integrated Arduino-like hardware platform for developing wifi IoT...
£5.64
Add:
HM-10 Compatible Bluetooth BLE Module
M040

HM-10 Compatible Bluetooth BLE Module

Bluetooth Low Energy communication module based on the CC2541 IC. Power supply - 3.6V-6Vdc Logic level - 3.3V. For communication with Arduino boards...
£6.92
Add:
4-Channel Bi-directional Logic Level Shifter
M042

4-Channel Bi-directional Logic Level Shifter

Enables interaction between different logic levels in the same system e.g. send 5V logic signals to 3.3V tolerant inputs. Signals can pass in both...
£0.58
Add:
Step-Up Voltage Converter - 5V USB Output
M044

Step-Up Voltage Converter - 5V USB Output

Input 0.9V - 5Vdc. Output 5Vdc @ 650mA max. via USB type A socket. Ideally suited to charger projects.
£0.74
Add:
BB_Duino Uno R3 - ATMega328P
M048

BB_Duino Uno R3 - ATMega328P

This clone of the Arduino Uno R3 uses a surface mount ATMega328P together with CH340G uart to handle the USB comms. 100% compatible and includes a...
£9.97
Add:
PCF8591 8-bit ADC/DAC Module
M049

PCF8591 8-bit ADC/DAC Module

I2C comms interface - address 0x48 Supply voltage 2.5V - 6Vdc. Onboard light sensor, thermistor and potentiometer connected to three ADC channels via...
£2.92
Add:
MicroSD Card Module
M050

MicroSD Card Module

Card reader/writer interfaces directly with 5V Arduino ports using SPI. 4.5V-5.5V supply. Gnd, Vcc, MISO, MOSI, SCK & CS via 0.1" right angle header...
£1.12
Add:
4-Digit 7-Segment Module with Colon
M055

4-Digit 7-Segment Module with Colon

"Digital Tube" display module - 0.36" This module uses a two pin serial interface to accept display data to the onboard TM1637 IC. Customer Chris...
£1.58
Add:
Nano 3.0 Clone
M057

Nano 3.0 Clone

Clone of the Arduino Nano 3.0 with ATMega328P microcontroller. 100% compatible. Depending on current stock, this module may not have the header pins...
£5.00
Add:
LM2596S Step-Down DC/DC Converter - Variable Output
M059

LM2596S Step-Down DC/DC Converter - Variable Output

Input 3V - 40Vdc. Output 1.3V-35Vdc Rated output current 2A max continuous, 3A with additional heatsinking. Buck converter operating at 150kHz - max...
£1.22
Add:
Step-Up DC/DC Converter - Variable Output
M060

Step-Up DC/DC Converter - Variable Output

Input 2V - 24Vdc. via solder pads or micro-USB socket. Output 28V max. Rated output current 2A max, 1A max continuous recommended, 3.5W approx. Buck...
£1.04
Add:
Nano Expansion Breakout Board
M061

Nano Expansion Breakout Board

Break out the Nano I/O to screw terminals. Nano pins push fit into central female headers. Board provided as a kit so soldering assembly is required....
£1.51
Add:
CP2102 6-pin micro-USB to TTL Serial
M062

CP2102 6-pin micro-USB to TTL Serial

USB-to-Serial converter based on the CP2102 chip. For debugging, firmware updating and general serial communications. Connects to PC via micro-USB...
£2.32
Add:
Relay Module 2-Ch 5V with Optocouplers.
M064

Relay Module 2-Ch 5V with Optocouplers.

Double relay module. Inputs Gnd, Vcc (5Vdc), channel 1 signal (active low), channel 2 signal (active low). Channel signals are optically isolated...
£2.83
Add:
5A Constant Current Step-Down DC/DC Converter
M065

5A Constant Current Step-Down DC/DC Converter

Input 8V - 36Vdc. Output 1.25V-32Vdc Constant max. output current can be varied up to 5A. 75W max. NOTE: To ensure correct current regulation and...
£2.54
Add:
Mini-PIR Module
M069

Mini-PIR Module

PIR motion sensor with operating in the 2.7V to 12Vdc supply range. Sensitivity 3-5m with output low to high for 2 secs on detection of motion....
£1.96
Add:

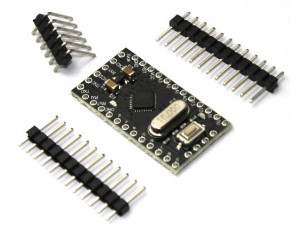

Pro Mini ATMega328P 3.3V 8MHz
M071

Pro Mini ATMega328P 3.3V 8MHz

Clone of the Arduino Pro Mini with ATMega328P microcontroller operating at 3.3V 8MHz. 100% compatible. The Pro Mini was designed as a low cost...
£3.77
Add:
Relay Module 4-Ch 5V with Optocouplers.
M081

Relay Module 4-Ch 5V with Optocouplers.

4-Channel relay module. Inputs Gnd, Vcc (5Vdc), channel select signal 1-4 (active low). Channel signals are optically isolated from the relay coils....
£3.11
Add:
Step-Down DC/DC Voltage Converter 1.8A - Variable Output
M082

Step-Down DC/DC Voltage Converter 1.8A - Variable Output

DC buck converter module based on the MP2307 IC. Input 4.75V - 23Vdc. Output 1V-17Vdc Output variable by on board miniature preset potentiometer. Our...
£0.84
Add:
