Stomp Switch PCB

  • Model: PCB017

 Ask a Question

£0.84

Add to Cart:
Simplify effects pedal off-board wiring.
Wire input and output jacks and main board direct to a central switching PCB carrying the true by-pass 3PDT stomp switch.
Switched ground connection for "pedal active" LED, if required.
Compatible with our foot switch SW108.
and SW197.
PCB dimensions: 28.2 x 23 x 1.6mm.

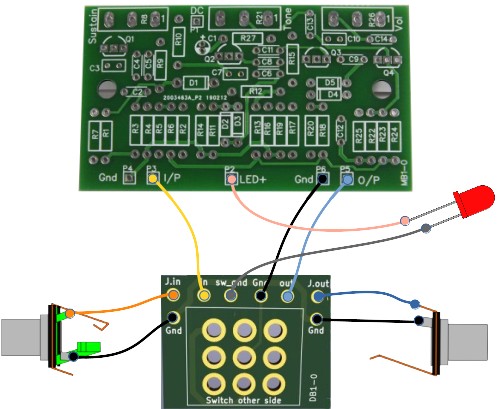

Example wiring:
